Convey capacity 800kg/h LSL 01 spiral loader plastic transmission equipment 2.2kw power
Production descriptions:
1) It is used for conveying granules and powder.
2) The screw feeding machine is suitable for conveying powder and particle materials, which is stable and fast, saveing time and energy and prevent dust from flying.The conveying length is optional and customized according to customer requirements.
3) The selection of screw feeder is to determine the installation size and motor power of the screw feeder according to the installation environment of the material's characteristic transport distance and inclined angle, etc. The inlet and outlet of the material has two specifications that is square and circular which can be selected by the user.The spiral direction of screw blade can be divided into right rotation and left rotation according to the direction of conveying materials, or it can be customized according to user requirements.
4) It is suitable for continuous measurement and batching of powder materials in various industrial production environments.
Features:
1) Suitable for the plastic granules and power conveying ,steady and fast.
2) Save manpower and prevent the dust float in the sky.
3) Long service life.Low noise.
4) Plastic spiral loader is adapted 304 stainless steel pipe .
5) Using a number of advanced technologies, reliable operation, high control precision;Especially suitable for continuous metering and batching of powder materials in building materials metallurgy, electric power and chemical industry.
Specifications:
| Model | Power(kw) | Convey Capacity(kg/h) | Dia.of screw(mm) | Weight(kg) |
| LSL-01 | 2.2 | 800 | 110 | 120 |
| LSL-02 | 3 | 1000 | 133 | 150 |
| LSL-03 | 4 | 2000 | 159 | 180 |

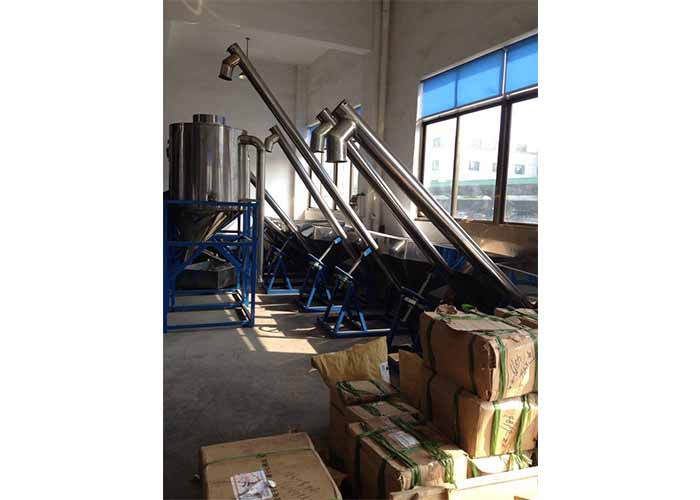

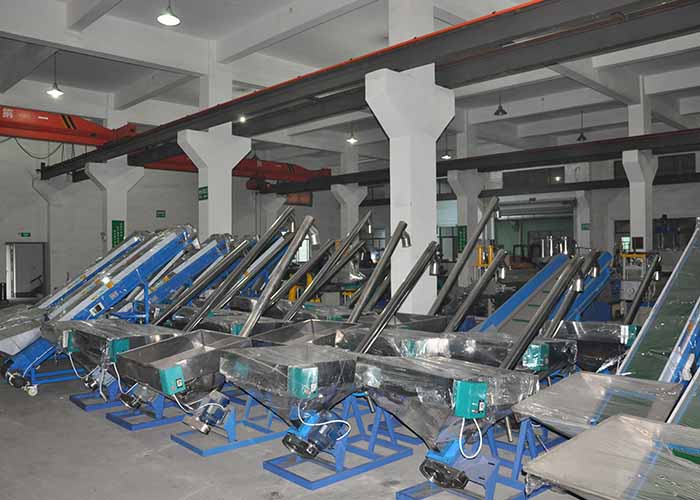

Detail images:
Packaging & Delivery:
1. We can provide custom-made packaging.
2. Prompt deliver at the very day.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
5. Sophisticated and professional logistic agent.
Competitive advantages:
1. Since 1992, professional manufacturer of plastic recycling machinie and pelletizing machine ;
2. The biggest manufacturer of plastic pelletizing machine in zhejiang province .
3. 3000 pcs quatity of pelletizer in one year .300 pcs quantity of recycling machine in one year.
4. Promise:We will provide technical support for all lifetime with over 20 years experiences.
